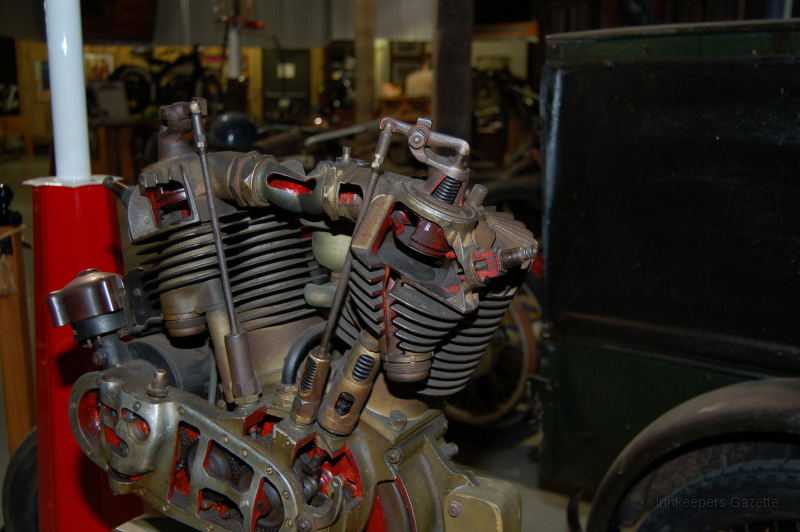

wheelsThruTime0014.JPG - A cut away "pocket valve" Harley-Davidson motor, showing the intake & exhaust valves in a pocket at the side of the combustion chamber. The exhaust valve is directly actuated by a push rod running against the cam; the intake valve is indirectly actuated via the external rocker arm on top of the cylinder.
